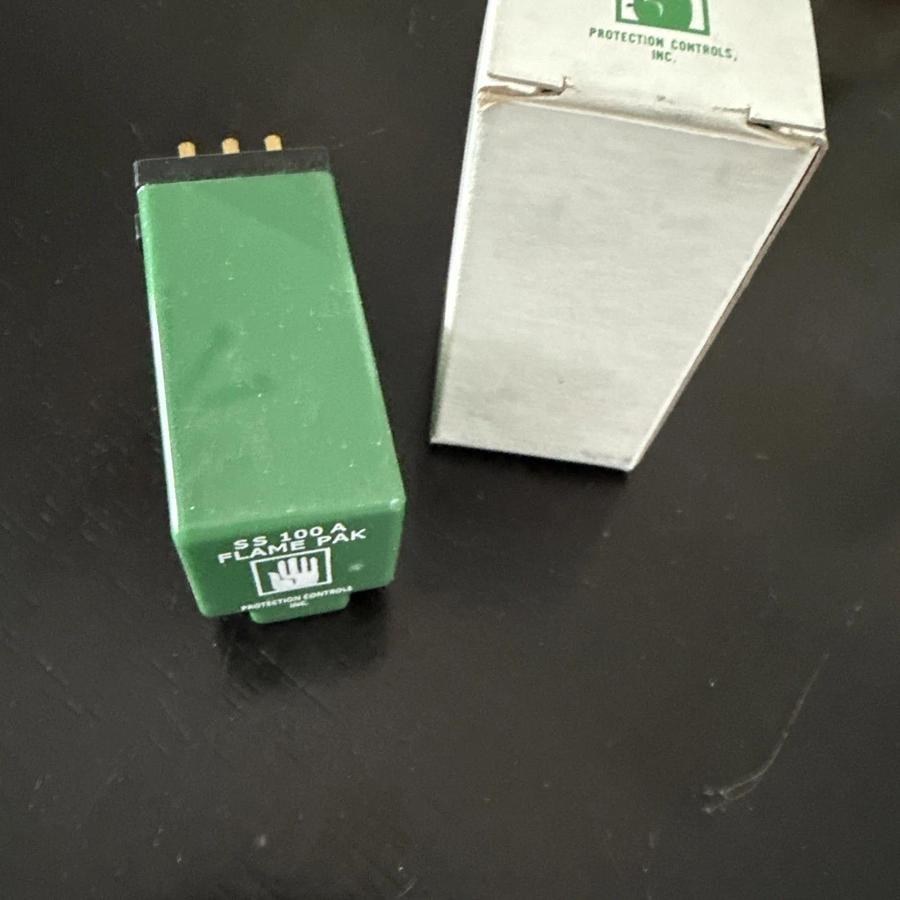

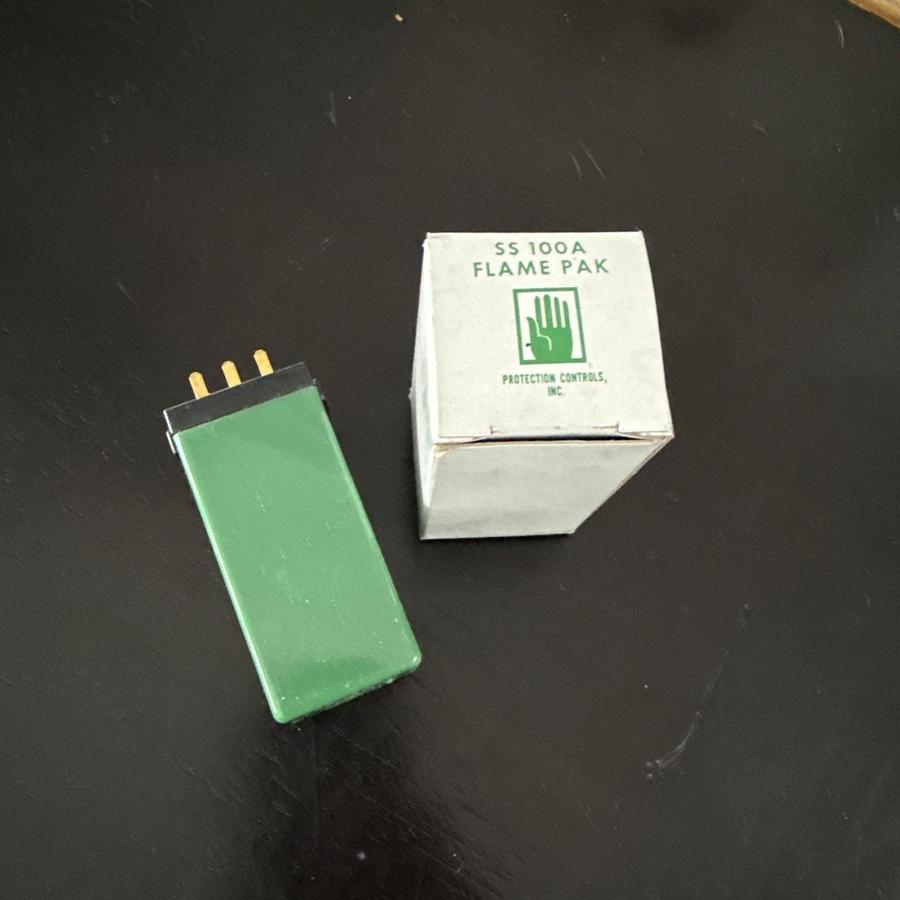

Protection Controls SS100A Flame Pak Safety Relay NEW

The Protection Controls SS100A Flame Pak Safety Relay is a plug-in electronic sensing unit used in industrial burner systems to provide immediate flame monitoring and ensure safety shutdown in the event of flame failure. Heat Treat Depot Heat Treat Depot +1 Key Features and Specifications Sensing Principle: Operates on the flame rectification principle, sensing flame either via a flame rod or a P-C II ultra-violet (U-V) scanner. Design: It is a plug-in, blade-style unit that fits into a compatible Protectofier chassis. Components: Utilizes an internal ACF (AC-operated, plug-in type) relay that responds to the amplified signal from the Flame Pak to control the fuel valves. Safety: If the flame signal is interrupted, the circuit to the fuel valves is broken, de-energizing them and potentially activating an alarm circuit. A built-in "Check Relay" system ensures a safe-start check before ignition can occur. Installation: Installation, operation, and maintenance should be performed by qualified personnel and must conform to National Fire Protection Association (NFPA) standards and local codes
